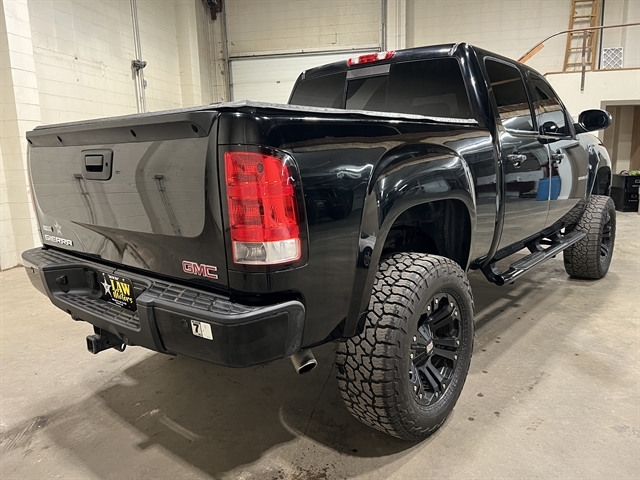

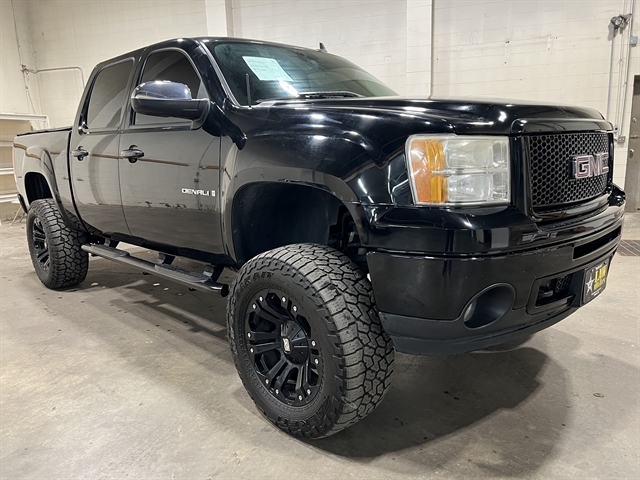

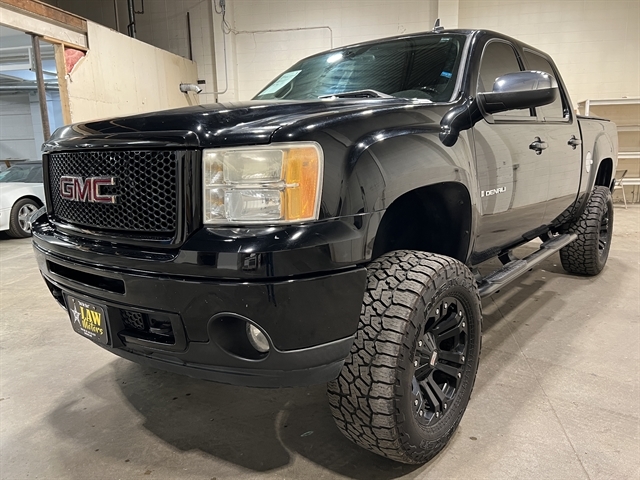

2009 GMC Sierra Denali

StabiliTrak, stability control system with Proactive Roll Avoidance

Daytime Running Lamps with automatic exterior lamp control

Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)

Air bags, head curtain side-impact, front and rear outboard seating positions with rollover sensor Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)

Rear Parking Assist, Ultrasonic with rearview LED display and audible warning

PACKAGE (4)

• Sierra Denali Package
• Trailering equipment, heavy-duty includes trailering hitch platform, 7-wire harness (harness includes wires for: park lamps, backup lamps, right turn, left turn, electric brake lead, battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector, instrument panel jumper wiring harness for electric trailer brake controller and 1-way sealed connector for center high-mounted stop/brake lamp
• Skid Plate Package includes front underbody shield starting behind front bumper and running to first cross-member, protecting front underbody, oil pan, differential case and transfer case, frame-mounted shields
• Heavy Duty Cooling Package, heavy-duty includes (KC4) external engine oil cooler, (KNP) auxiliary external transmission oil cooler, electric fan and heavy-duty radiator

MECHANICAL (17)

• Engine, Vortec 6.2L V8 SFI E85-compatible, FlexFuel, capable of running on unleaded or up to 85% ethanol (403 hp [300.5 kW] @ 5700 rpm, 417 lb-ft of torque [565.4 N-m] @ 4300 rpm)
• Rear axle, 3.42 ratio (Refer to Engine/Axle chart for availability.)
• Suspension Package, High-Performance includes 36mm front stabilizer bar
• GVWR, 7000 lbs. (3175 kg) (Requires TK10543 models.)
• Differential, heavy-duty automatic locking rear
• Cooling external engine oil cooler, heavy-duty air-to-oil, integral to driver side of radiator tank
• Cooling auxiliary external transmission oil cooler, heavy-duty air-to-oil
• Battery, heavy-duty 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
• Alternator, 145 amps
• Frame, fully-boxed, hydroformed front section

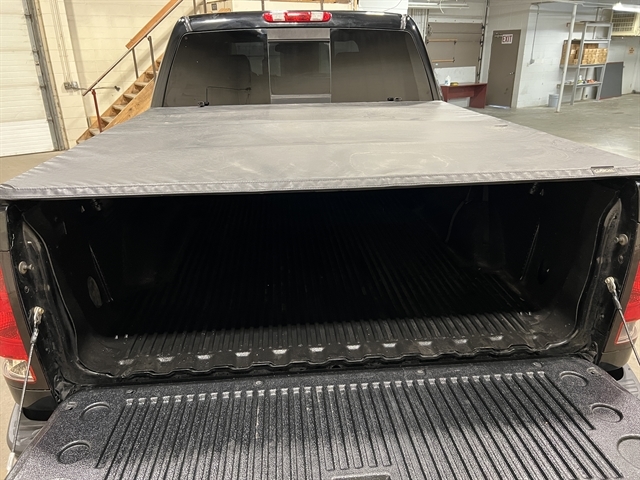

• Pickup box, Wideside
• Suspension, front coil-over-shock with stabilizer bar
• Suspension, rear 2-stage multi-leaf springs semi-elliptic
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust aluminized stainless-steel muffler and tailpipe
• Tools mechanical jack and wheel wrench located in back of cab

EXTERIOR (19)

• Wheel, 17" x 7.5" (43.2 cm x 19.1 cm) steel spare
• Tire, spare P265/70R17 blackwall includes steel wheel located at rear underbody of vehicle
• Tire carrier, lockable outside spare winch-type mounted under frame at rear
• Spare tire lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper, rear painted, step-style with pad
• Air dam, color-keyed
• Moldings, bodyside, body-colored (Moldings are deleted if any SEO paint is ordered.)
• Moldings, chrome bodyside
• Grille, chrome surround with chrome center, Denali-exclusive
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Fog lamps, front, halogen
• Lamps, dual cargo area lamps
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming, body-color with integrated turn signal indicators, ground illumination and curb-tilt
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield, driver- and front passenger-side glass)
• Wipers, front intermittent wet-arm with pulse washers
• Tailgate protection top of tailgate protection cap
• Tailgate, locking
• Tailgate, EZ-Lift
• Door handles, chrome

ENTERTAINMENT (2)

• Audio system feature, Bose premium speaker system with sub-woofer in center console
• Bluetooth for phone personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface)

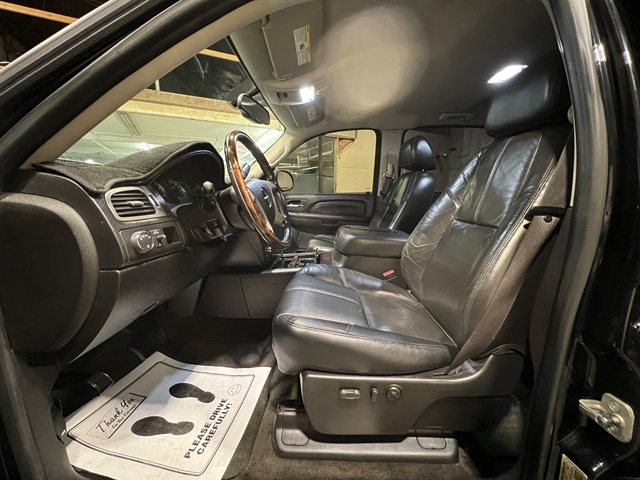

INTERIOR (19)

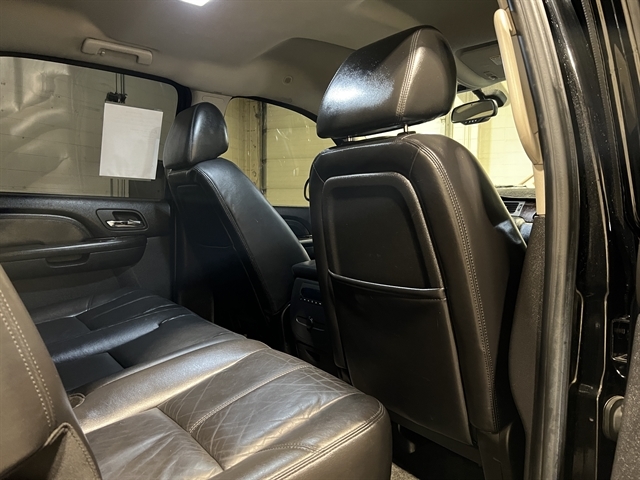

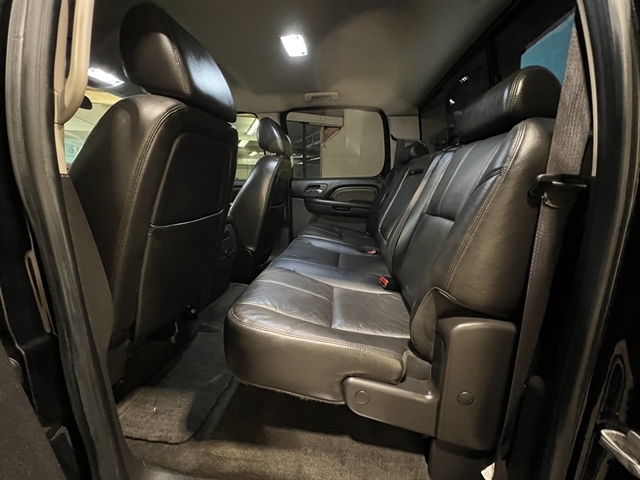

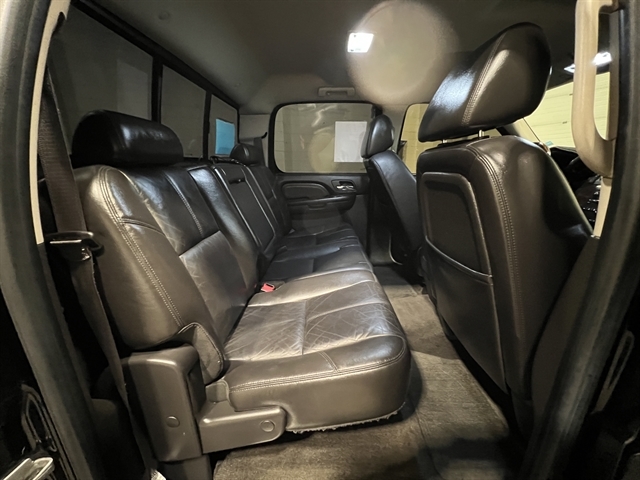

• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor)
• Steering wheel controls mounted audio and Driver Information Center controls which provides access to enhanced Driver Information Center features and information
• Steering column, Tilt-Wheel, adjustable with brake/transmission shift interlock, color-keyed
• Driver Information Center with odometer, trip odometer and message center (monitors numerous systems depending on vehicle equipment level including low fuel, turn signal "on", transmission temperature and oil change notification)
• Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature, oil pressure and tachometer
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Windows, power with driver and front passenger Express-Down
• Pedals, power-adjustable for accelerator and brake
• Universal Home Remote
• Cruise control, electronic with set and resume speed
• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger
• Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
• Cup holders, in console and rear
• Mirror, inside rearview auto-dimming
• Headliner, Opal Gray-colored cloth with matching retainer moldings
• Visors, driver and front passenger illuminated vanity mirrors padded with cloth trim, Opal-Gray-colored
• Assist handles, front passenger and rear outboard
• Lighting, interior with dome and reading lights, illuminated entry feature and blue backlit instrument panel switches
• Coat hooks, driver- and passenger-side rear
